We specialize in submersible, booster, land, deep-well, and solar pumps, providing reliable solutions for various water applications.

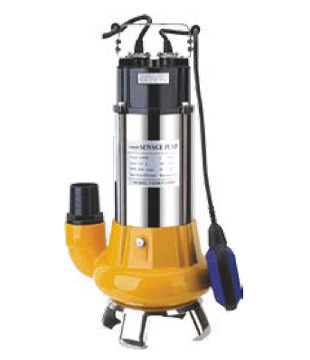

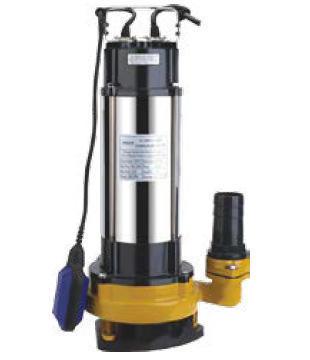

Mogel V(WQ)submersible sewage pump series, a branch of single-phase and three-phree-phase drainage pumps,will be your ideal drainage helper. The letter "V" which substitutes for the letters "WQ" indicates the distince design of the filter and the broadness of the high efficient area.It can work safely and efficiently at high flux with the feature of complete heads.The design is designed to a wide tunnel which helps to convey the long fiber liquid or the solid whose diameter is aboit 15~25mm.The selection of bottom suction structure,stainless steel and special cast iron made the pump has the capabilities of complete drain and high resistance of abrasion and corrosion.The float switch can automatically control on and off with the change of the liquor lever.The protector in the motor can automatically cut off the power when it overheated or overcurrented,thus guarantee the security and reliability of pump's run even in the atrocious environment.
Working conditions
1.The maximum deep allowed in water is 5m from its center of impeller;
2.The trans medium's temperature shouldn't be higher than 40℃;
3.Trans medium's PH:4~10;
4.Kinematics viscosity of the trans mediumis: 7x10-7~23x10-6m2/s;
5.Density of the trans medium Limit:1.2x103 kg/m3.
Bolailike Pump Group’s registered capital is 228.80 million yuan, covering an area of 22,300 m². The company employs more than 200 people, over 30% of whom hold a college degree or above, including 25 senior and intermediate technicians. Bolailike is equipped with advanced machining centers, CNC lathes, and CNC vertical lathes, enabling high-precision manufacturing and quality assurance for its pump products.
